Union Ball Valve Ms Handle
We are one of the leading companies in the industry known for manufacturing the best quality union valve and double union ball valve MS Handle. A double union ball valve has, as implied, two unions on it – one on either side. The unions enable the valve to be unscrewed and removed from the pipeline, where it can be serviced or checked to see whether it’s blocked, and then easily put back in the pipeline where the unions can get screwed back on. This means that to get to your valve and service it, you won’t have to worry about cutting your pipe. It also means that returning your valve to your pipe system is a fast process and won’t keep your system down for long.
The main advantage of a double union ball valve is that it has a full-bore flow all the way through. This means there is nothing to catch any debris that might be coming down in the water or fluid. DOUBLE UNION VALVE are available in Screw End & Plain Socket End. These Valves can be used for pipe in Drip Irrigation, for managing water pumping system used for agricultural land & horticulture. union valve can also be used for water supply system in commercial as well as domestic sector.
PVC Double Union Ball Valve Manufacturer
Payal Irrigation devotes itself to producing high-end PVC Double Union Ball Valves with simple operation while providing long service life and precise control. These valves achieve long service life and excellent chemical resistance because they use premium-grade PVC materials to construct them. Users can maintain and install these valves using their double union system because each subunit functions independently from the rest of the system. PVC Double Union Ball Valves function as dependable, lightweight, leak-proof units designed for industrial, agricultural and plumbing as well as irrigation systems. Pick Payal Irrigation if you need innovative valve options which combine both high performance and cost-effectiveness and adapt to your individual specifications.
True Union Ball Valve Manufacturer
Our True Union Ball Valves are perfect for industrial and domestic applications because of their excellent flow control and easy maintenance. Our True Union Ball Valves, made with durability and accuracy in mind, provide leak-free operation and simple disassembly for maintenance and cleaning.
TECHNICAL SPECIFICATION
| Material Of Ball valve | Polypropylene (PP) |
| Design | Union type Body |
| Brand | Payal |
| Size Range | 20 MM to 110 MM ( ½” to 4” ) |
| Connection End | Pvc Solid type screw end & Plain Ball Valve |
| Test pressure | 10 kg. /cm2 |
| Max working temp | 70 c (consistently) |
| Colours | Black , Gray |
| Seat Ring Material | EPDM material |
APPLICATION
- Water project in construction.
- Water treatment for swimming pool.
- Water project in PISCI culture.
- Irrigation for agriculture.
100% SATISFACTION GUARANTEED
We guarantee that the quality of our products will be checked before shipment.
Union Ball Valve
| Valve Size | 1 1/2 Inch |
| Color | Black |
| Material | UPVC |
| Pressure | Medium Pressure |
| Media | Water |
| Connector Type | Flanged End |
| Brand | Payal |

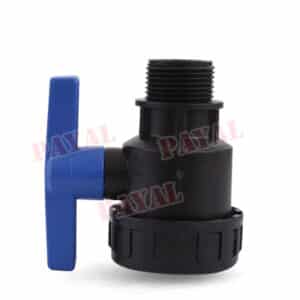

Male/Female 32mm Single Union Ball Valve
| Condition | New |
| Valve Size | 1″ |
| Color | BLACK |
| Material | PP |
| Media | Water |
| Pressure | Medium Pressure |
| Usage/Application | Drip Irrigation |
| Minimum Order Quantity | 100 Piece |
| Brand | Payal |
PP Union Valve
| Size | 15mmX1/2″ TO 110mmX4″ |
| Color | Black & Greay |
| Usage/Application | Agriculture |
| Pressure | Medium Pressure |
| Material | PP |
| Brand | Payal |
| Model Name/Number | Union VAlve |
| Country of Origin | Made in India |
| Minimum Order Quantity | 50 Pack |

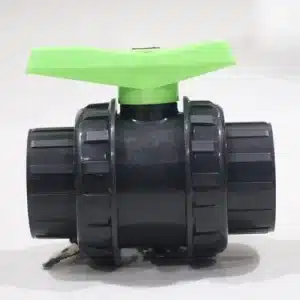

PVC Water Union Type Ball Valve
| Brand | Payal |
| Usage/Application | Home, Office, Industrial, etc |
| Valve Size | 50 mm |
| Color | Black, Green, etc |
| Material | PVc |
| Media | Water |
| Packaging Type | Box |
| Country of Origin | Made in India |
| Surface Finish | Color Coated |
True Union Ball Valve
| Material | PVC, CPVC, Clear PVC, PP, PVDF |
| Size | 1/2′ – 4′; 20mm – 110mm |
| Usage/Application | Industrial |
| Brand | Payal |
| Testing Standard | ANSI, DIN, JIS, CNS |
| Joint End | Socket, Threaded(NPT, PT, BSPF), Fusion, Welding |
| Working Pressure | 150 PSI |
| Operating Temperature | PVC(0~55 Degree C); CPVC & PP(0~95 Degree C) |
| Handle Color | Red, Blue, Green, Orange |
Black PP CP Ball Valve Union Type
| Size | 63mm to 90mm |
| Usage/Application | Water |
| Pressure | Medium Pressure |
| Valve Size | 63mm To 90mm |
| Color | Black |
| Material | Pp cp |
| Brand | Payal |
PVC Double Union Ball Valve
| Valve Size | 1 inch |
| Color | Black |
| Pressure | Low Pressure |
| Material | PP |
| Connector Type | Screwed |
| Finishing | GOOD |
| Head Shape | GOOG |
| Temperature Of Media | Low Temperature |
| Maximum Pressure | 5 KG |
| Brand | Payal |
