PP Flanged Valve Manufacturers, Suppliers & Exporters in India
Payal Irrigation is a well known PP Flanged Valve manufacturer & supplier in Indial with reliable and long lasting products in terms of flow control which can be used in agriculture and industries. Our PP flanged valve is manufactured using high-quality polypropylene and are therefore lightweight and corrosion-resistant as well as easy to install.
They are extensively applied in irrigation systems, chemical industries and water treatment systems to regulate the fluid flow with efficiency. The PP Flanged Valves of Payal Irrigation are tight sealed and have great pressure handling capabilities and are suitable in the contemporary irrigation and fluid control system. The PP Flanged Valves made by Payal Irrigation are the ideal blend of quality and performance, whether it is for agricultural irrigation or industrial pipelines.
PP Flanged Valve – What is it?
PP Flanged Valve is a high-performance flow control valve that is used with flange end connection to securely install in pipeline system. These valves are made of high quality Polypropylene (PP) material, are highly corrosion resistant, light weight and have a long life in applications such as irrigation, agriculture, chemical processing, water treatment and industrial processes.
PP Flanged Valves are suitable for the water and fluid control, regulation and stop in medium and high pressure water and fluid piping systems. They are flanged to provide excellent connections, maintenance and sealing.
Key Features
✔ High-Quality Polypropylene Material
✔ Leak-Proof Performance
✔ Strong Flanged Connection
✔ Smooth Operation
✔ Long Service Life
Key Benefits
✔ Excellent Corrosion Resistance
✔ Easy Installation & Maintenance
✔ Lightweight Design
✔ Cost-Effective Solution
✔ Strong & Secure Connections
✔ Reliable Flow Control
Technical Specification
| Material Of Construction | PP (Polypropylene) / HDPE(Highdensitypolyethylene)/ PVDF(Polyvinylidene fluoride) |
| Design | 3 Piece Design |
| Maximum working temp | 80 c (consistently) |
| Connection End | Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. |

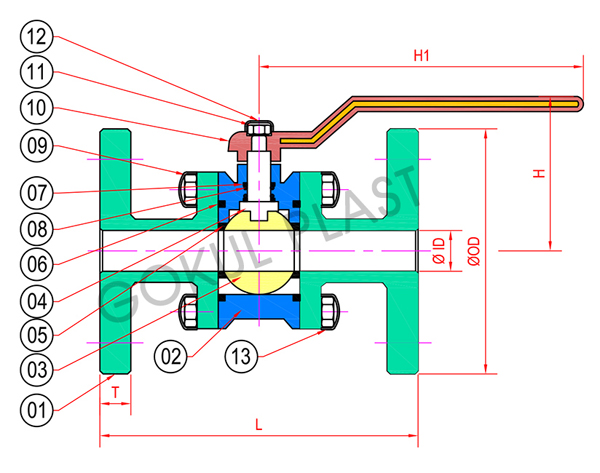

| Construction | 3 piece design, 1 piece stem (spindle), full bore, Teflon seated |
| Hydraulic Test Pressure | Body-150 PSI & SEAT-100PSI |
| Size Range | ½” 15MM TO 12’’-315MM |
| Standard | As per manufactuer’s |
Our Products
Installation Guidelines
- Always align the flange prior to installation.
- Install using correct gasket material when sealing
- Be sure to tighten bolts evenly to prevent leakage.
- Check valve is supposed to be in operation as it would be installed.
- Check periodically for optimum performance
If the valve is installed correctly, the valve life and system efficiency will be enhanced.
